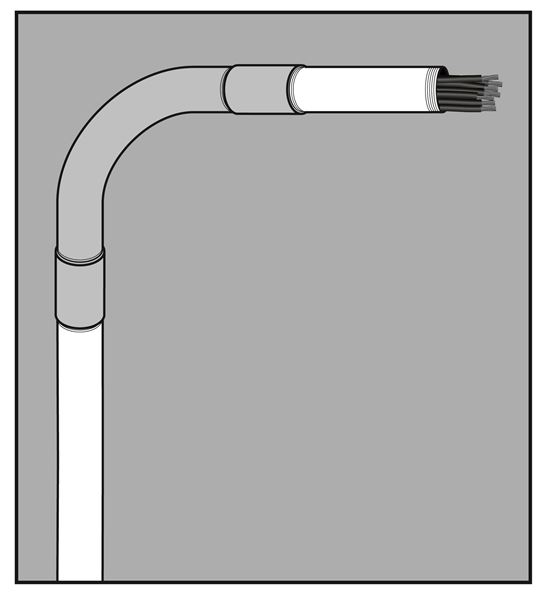

Conduit provides a means of protection for wiring and cable in electrical systems. Gibson Stainless offers rigid (heavywall, Schedule 40) conduit in Type 316 SS and Type 304 SS. Conduit is threaded on both ends with NPT threads. Each 10' length of conduit is supplied with one coupling and a color coded thread protector for the opposite end.
Conduit is stocked in 10' lengths; however, custom lengths can be made available upon request.
Material: 316SS and 304SS
Standards: ASTM A12
Compliances: UL Listed for Canada and US (Standard 6A)
UL File Number DYWV.E300683
Canada UL File Number DYWV7.E300683
Manufactured in USA
Item # |
Size |
Threads Per Inch |
Inside Diameter "D" |
Outside Diameter "B" |
List Price |
|---|---|---|---|---|---|
| CND50 CND50/Asset/Conduit_Application.jpg | Size N/A 1/2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 0.62 in | Outside Diameter "B" N/A 0.84 in | QUOTE |
| CND75 CND75/Asset/Conduit_Application.jpg | Size N/A 3/4 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 0.82 in | Outside Diameter "B" N/A 1.05 in | QUOTE |
| CND100 CND100/Asset/Conduit_Application.jpg | Size N/A 1 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.05 in | Outside Diameter "B" N/A 1.32 in | QUOTE |
| CND125 CND125/Asset/Conduit_Application.jpg | Size N/A 1-1/4 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.38 in | Outside Diameter "B" N/A 1.66 in | QUOTE |
| CND150 CND150/Asset/Conduit_Application.jpg | Size N/A 1-1/2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.61 in | Outside Diameter "B" N/A 1.9 in | QUOTE |
| CND200 CND200/Asset/Conduit_Application.jpg | Size N/A 2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 2.07 in | Outside Diameter "B" N/A 2.38 in | QUOTE |
| CND250 CND250/Asset/Conduit_Application.jpg | Size N/A 2-1/2 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 2.47 in | Outside Diameter "B" N/A 2.88 in | QUOTE |
| CND300 CND300/Asset/Conduit_Application.jpg | Size N/A 3 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 3.07 in | Outside Diameter "B" N/A 3.5 in | QUOTE |
| CND400 CND400/Asset/Conduit_Application.jpg | Size N/A 4 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 4.03 in | Outside Diameter "B" N/A 4.5 in | QUOTE |
| CND50-304SS CND50-304SS/Asset/Conduit_Application.jpg | Size N/A 1/2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 0.62 in | Outside Diameter "B" N/A 0.84 in | QUOTE |
| CND75-304SS CND75-304SS/Asset/Conduit_Application.jpg | Size N/A 3/4 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 0.82 in | Outside Diameter "B" N/A 1.05 in | QUOTE |
| CND100-304SS CND100-304SS/Asset/Conduit_Application.jpg | Size N/A 1 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.05 in | Outside Diameter "B" N/A 1.32 in | QUOTE |
| CND125-304SS CND125-304SS/Asset/Conduit_Application.jpg | Size N/A 1-1/4 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.38 in | Outside Diameter "B" N/A 1.66 in | QUOTE |
| CND150-304SS CND150-304SS/Asset/Conduit_Application.jpg | Size N/A 1-1/2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 1.61 in | Outside Diameter "B" N/A 1.9 in | QUOTE |
| CND200-304SS CND200-304SS/Asset/Conduit_Application.jpg | Size N/A 2 in. | Threads Per Inch N/A 14 | Inside Diameter "D" N/A 2.07 in | Outside Diameter "B" N/A 2.38 in | QUOTE |
| CND250-304SS CND250-304SS/Asset/Conduit_Application.jpg | Size N/A 2-1/2 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 2.47 in | Outside Diameter "B" N/A 2.88 in | QUOTE |
| CND300-304SS CND300-304SS/Asset/Conduit_Application.jpg | Size N/A 3 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 3.07 in | Outside Diameter "B" N/A 3.5 in | QUOTE |
| CND400-304SS CND400-304SS/Asset/Conduit_Application.jpg | Size N/A 4 in. | Threads Per Inch N/A 8 | Inside Diameter "D" N/A 4.03 in | Outside Diameter "B" N/A 4.5 in | QUOTE |
